SIMATIC S7-1200 controllers are the intelligent choice for compact automation solutions with integrated IOs, communication and technology functions for automation tasks
in the low to medium performance range. They are available in standard and fail-safe versions.
The scalable SIMATIC S7-1200 controllers have integrated inputs and outputs as well as communication options and are modularly expandable. Digital and analog input
and output modules as well as a wide variety of communication modules enable flexible adaptation to the respective automation task. With integrated technologies such as
high-speed counters, pulse width modulation, pulse sequence outputs, speed control and positioning, SIMATIC S7-1200 controllers are suitable for temperature control,
pump and fan control, conveyor technology and even packaging machines.
• The seamless integration of the SIMATIC controllers into the common engineering framework TIA Portal provides consistent data management, the smart library
concept and a uniform operating philosophy. This makes it especially easy to use system-spanning functions.
• Efficient error analysis and fast error localization with the new uniform display concept – plain text information of the error message in TIA Portal, on the HMI and in the
Web server – shortens commissioning times and minimizes production downtimes. SIMATIC S7-1200 offers you diagnostic functionality already integrated in the
system without additional programming work.
• The SIMATIC S7-1200 Basic Controller can be perfectly adapted to the respective automation task by implementing a wide range of expansion options. The modular
board concept allows the controller to be easily expanded without changing its physical size. Devices can be easily replaced without rewiring by employing terminal
strips.
• Fail-safe automation is as easy to program as the standard, and PROFIsafe devices are connected via PROFINET.
• Simple Motion Control applications, fast counting and measuring tasks, and closed-loop control (PID) are possible without special expansion modules.
• Secure communication, know-how protection, copy protection and access protection prevent manipulation, opening and duplication of blocks by unauthorized
persons, thus protecting your algorithm or process.
Central processing units
Article number
Compare technical specifications online
CPU 1211C Compare technical specifications online
CPU 1211C, DC/DC/DC, 6DI/4DO/2AI 6ES7211-1AE40-0XB0
CPU 1211C, AC/DC/Relay, 6DI/4DO/2AI 6ES7211-1BE40-0XB0
CPU 1211C, DC/DC/Relay, 6DI/4DO/2AI 6ES7211-1HE40-0XB0
CPU 1212C Compare technical specifications online
CPU 1212C ,DC/DC/DC, 8DI/6DO/2AI 6ES7212-1AE40-0XB0
CPU 1212C, AC/DC/Relay, 8DI/6DO/2AI 6ES7212-1BE40-0XB0
CPU 1212C, DC/DC/Relay, 8DI/6DO/2AI 6ES7212-1HE40-0XB0
CPU 1212FC ,DC/DC/DC, 8DI/6DO/2AI 6ES7212-1AF40-0XB0
CPU 1212FC, DC/DC/Relay, 8DI/6DO/2AI 6ES7212-1HF40-0XB0
SIPLUS S7-1200 CPU 1212C DC/DC/DC RAIL 6AG2212-1AE40-1XB0
SIPLUS S7-1200 CPU 1212C DC/DC/DC 6AG1212-1AE40-2XB0
SIPLUS S7-1200 CPU 1212C DC/DC/DC 6AG1212-1AE40-4XB0
SIPLUS S7-1200 CPU 1212C AC/DC/RLY 6AG1212-1BE40-2XB0
SIPLUS S7-1200 CPU 1212C AC/DC/RLY 6AG1212-1BE40-4XB0
SIPLUS S7-1200 CPU 1212C DC/DC/RLY 6AG1212-1HE40-2XB0
SIPLUS S7-1200 CPU 1212C DC/DC/RLY 6AG1212-1HE40-4XB0

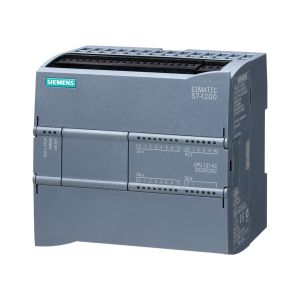

CPU 1214C Compare technical specifications online
CPU 1214C, DC/DC/DC, 14DI/10DO/2AI 6ES7214-1AG40-0XB0
CPU 1214C, AC/DC/Relay, 14DI/10DO/2AI 6ES7214-1BG40-0XB0
CPU 1214C, DC/DC/Relay, 14DI/10DO/2AI 6ES7214-1HG40-0XB0
CPU 1214 FC, DC/DC/DC, 14DI/10DO/2AI 6ES7214-1AF40-0XB0
CPU 1214 FC, DC/DC/Relay, 14DI/10DO/2AI 6ES7214-1HF40-0XB0
SIPLUS S7-1200 CPU 1214FC DC/DC/DC 6AG1214-1AF40-5XB0
SIPLUS S7-1200 CPU 1214C DC/DC/DC RAIL 6AG2214-1AG40-1XB0
SIPLUS S7-1200 CPU 1214C DC/DC/DC 6AG1214-1AG40-2XB0
SIPLUS S7-1200 CPU 1214C DC/DC/DC 6AG1214-1AG40-4XB0
SIPLUS S7-1200 CPU 1214C DC/DC/DC 6AG1214-1AG40-5XB0
SIPLUS S7-1200 CPU 1214C AC/DC/RLY 6AG1214-1BG40-2XB0
SIPLUS S7-1200 CPU 1214C AC/DC/RLY 6AG1214-1BG40-4XB0
SIPLUS S7-1200 CPU 1214C AC/DC/RLY 6AG1214-1BG40-5XB0
SIPLUS S7-1200 CPU 1214FC DC/DC/RLY 6AG1214-1HF40-5XB0
SIPLUS S7-1200 CPU 1214C DC/DC/RLY 6AG1214-1HG40-2XB0
SIPLUS S7-1200 CPU 1214C DC/DC/RLY 6AG1214-1HG40-4XB0
SIPLUS S7-1200 CPU 1214C DC/DC/RLY 6AG1214-1HG40-5XB0

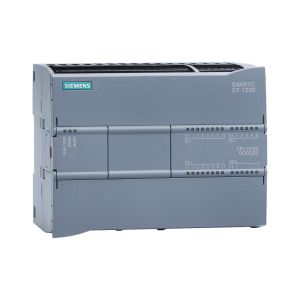

CPU 1215C Compare technical specifications online
CPU 1215C, DC/DC/DC, 14DI/10DO/2AI/2AO 6ES7215-1AG40-0XB0
CPU 1215C, AC/DC/RLY, 14DI/10DO/2AI/2AO 6ES7215-1BG40-0XB0
CPU 1215C, DC/DC/RLY, 14DI/10DO/2AI/2AO 6ES7215-1HG40-0XB0
CPU 1215 FC, DC/DC/DC, 14DI/10DO/2AI/2AO 6ES7215-1AF40-0XB0
CPU 1215 FC, DC/DC/RLY,14DI/10DO/2AI/2AO 6ES7215-1HF40-0XB0
SIPLUS S7-1200 CPU 1215FC DC/DC/DC 6AG1215-1AF40-5XB0
SIPLUS S7-1200 CPU 1215C DC/DC/DC 6AG1215-1AG40-5XB0
SIPLUS S7-1200 CPU 1215C DC/DC/DC 6AG1215-1AG40-2XB0
SIPLUS S7-1200 CPU 1215C DC/DC/DC 6AG1215-1AG40-4XB0
SIPLUS S7-1200 CPU 1215C AC/DC/RLY 6AG1215-1BG40-5XB0
SIPLUS S7-1200 CPU 1215C AC/DC/RLY 6AG1215-1BG40-2XB0
SIPLUS S7-1200 CPU 1215C AC/DC/RLY 6AG1215-1BG40-4XB0
SIPLUS S7-1200 CPU 1215C DC/DC/RLY 6AG1215-1HG40-5XB0
SIPLUS S7-1200 CPU 1215C DC/DC/RLY 6AG1215-1HG40-2XB0
SIPLUS S7-1200 CPU 1215C DC/DC/RLY 6AG1215-1HG40-4XB0

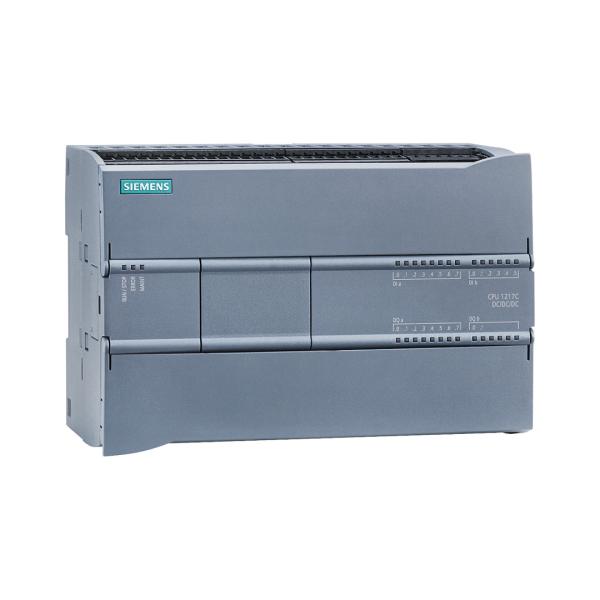

SIPLUS S7-1200 CPU 1217C, DC/DC/DC, 14DI/10DQ/2AI/2AQ 6ES7217-1AG40-0XB0
Signal boards
Article number
Digital inputs Compare technical specifications online
Signal Board SB 1221, 4 DI 24VDC 200KHz 6ES7221-3BD30-0XB0
Signal Board SB 1221, 4 DI 5VDC 200KHz 6ES7221-3AD30-0XB0
SIPLUS S7-1200 SB 1221 4DI 5VDC 6AG1221-3AD30-5XB0
SIPLUS S7-1200 SB 1221 4DI 24VDC 6AG1221-3BD30-5XB0
Digital outputs Compare technical specifications online
Signal Board SB1222, 4 DQ 24VDC 200KHz 6ES7222-1BD30-0XB0
Signal Board SB1222, 4 DQ 5VDC 200KHz 6ES7222-1AD30-0XB0
SIPLUS S7-1200 SB 1222 4DQ 5VDC 6AG1222-1AD30-5XB0
SIPLUS S7-1200 SB 1222 4DQ 24VDC 6AG1222-1BD30-5XB0
Digital inputs/outputs Compare technical specifications online

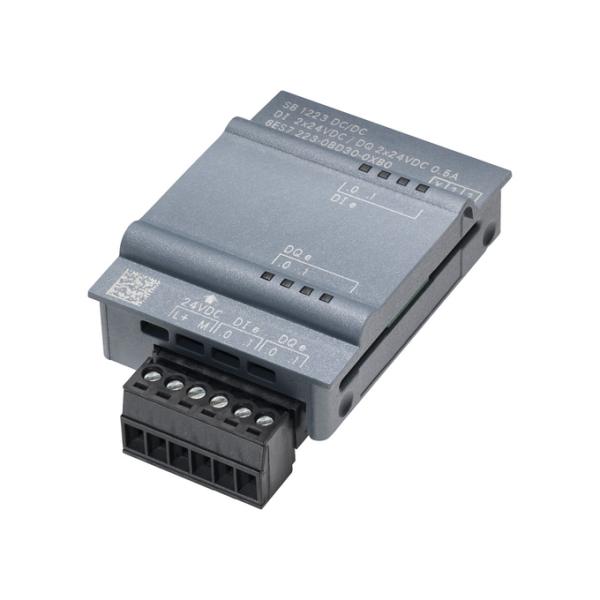

Signal Board SB1223, 2 DI/2 DO 6ES7223-0BD30-0XB0
Signal Board SB 1223, 2DI/2DQ 24V 200KHz 6ES7223-3BD30-0XB0
Signal Board SB 1223, 2DI/2DQ 5V 200KHz 6ES7223-3AD30-0XB0
SIPLUS S7-1200 SB 1223 2DI/2DQ 24VDC 6AG1223-0BD30-4XB0
SIPLUS S7-1200 SB 1223 2DI/2DQ 24VDC 6AG1223-0BD30-5XB0
SIPLUS S7-1200 SB 1223 2DI/2DQ RAIL 6AG2223-0BD30-1XB0
SIPLUS S7-1200 SB 1223 2DI/2DQ 5VDC 6AG1223-3AD30-5XB0
SIPLUS S7-1200 SB 1223 2DI/2DQ, 24VDC 6AG1223-3BD30-5XB0
Analog inputs Compare technical specifications online
Signal Board SB 1231, 1 AI 6ES7231-4HA30-0XB0
Signal Board SB 1231 RTD 6ES7231-5PA30-0XB0
Signal Board SB 1231 TC, 1 AI 6ES7231-5QA30-0XB0
SIPLUS S7-1200 SB 1231 1AI RTD 6AG1231-5PA30-5XB0
Analog outputs Compare technical specifications online
Signal Board SB 1232, 1 AO 6ES7232-4HA30-0XB0
SIPLUS S7-1200 SB 1232 1AQ 6AG1232-4HA30-4XB0
SIPLUS S7-1200 SB 1232 1AQ 6AG1232-4HA30-5XB0
Communication boards
Article number
Compare technical specifications online
Point-to-point Compare technical specifications online
Communication Board CB 1241, RS485 6ES7241-1CH30-1XB0
SIPLUS S7-1200 CB 1241 RS485 6AG1241-1CH30-5XB1
SIPLUS S7-1200 CB 1241 RS485 T1 RAIL 6AG2241-1CH30-1XB0
Technology modules
Article number
SIWAREX WP231 WEIGHING ELECTRONIC 7MH4960-2AA01
SIWAREX WP241 WEIGHING ELECTRONIC 7MH4960-4AA01
SIWAREX WP251 WEIGHING ELECTRONIC 7MH4960-6AA01
SM1281_Condition_Monitoring 6AT8007-1AA10-0AA0
Power supplies
Article number
Compare technical specifications online
SIMATIC PM1207/1AC/24VDC/2.5A 6EP1332-1SH71
SIPLUS
SIPLUS POWER MODUL PM1207 6AG1332-1SH71-4AA0
SIPLUS POWER MODUL PM1207 6AG1332-1SH71-7AA0
Accessories
Article number
Memory card Compare technical specifications online
SIMATIC S7 memory card, 4 MB 6ES7954-8LC03-0AA0

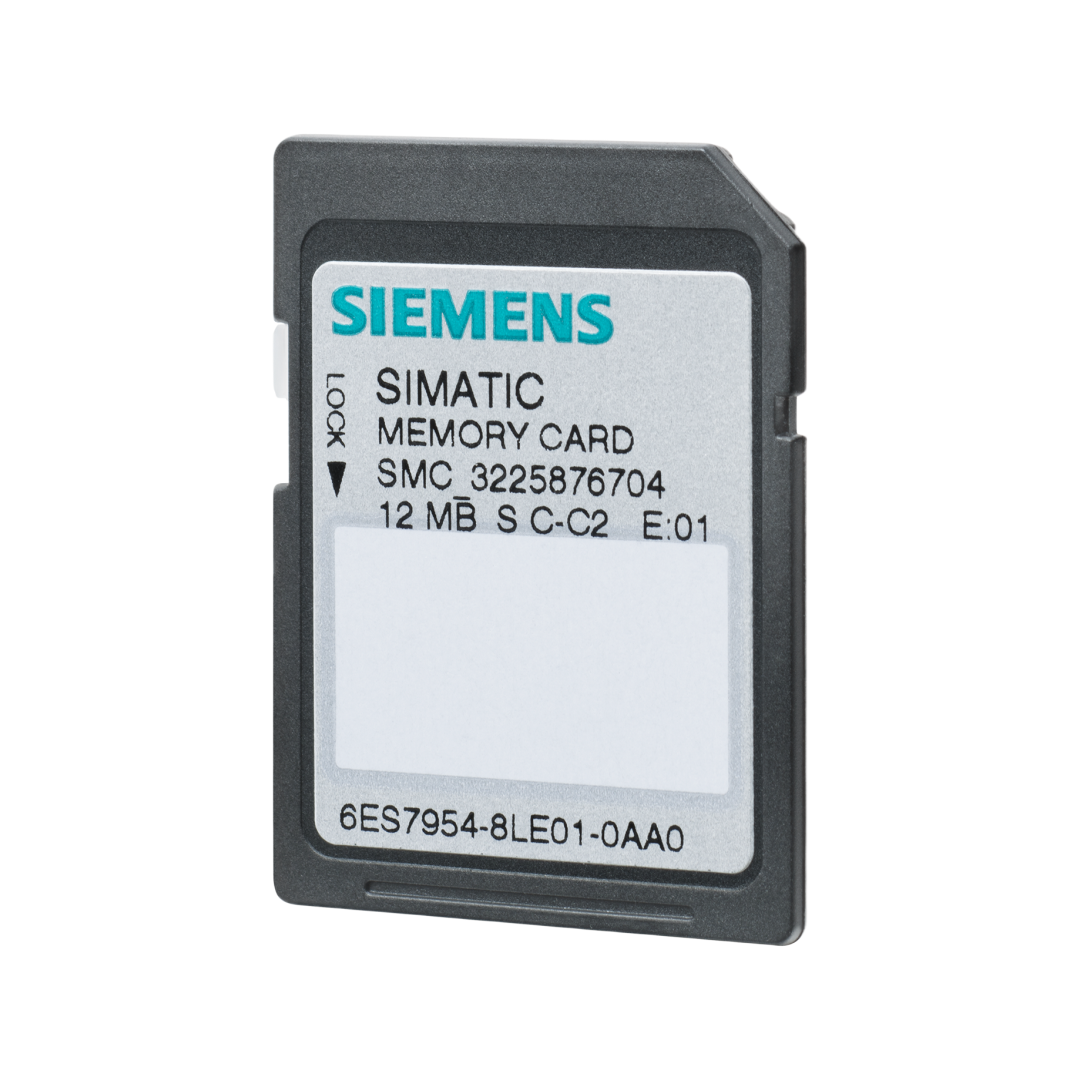

SIMATIC S7 Memory Card, 12 MB 6ES7954-8LE03-0AA0
SIMATIC S7 Memory Card, 24 MB 6ES7954-8LF03-0AA0
SIMATIC S7 Memory Card, 256 MB 6ES7954-8LL03-0AA0
SIMATIC S7 Memory Card, 2 GB 6ES7954-8LP03-0AA0
SIMATIC S7 Memory Card, 32 GB 6ES7954-8LT03-0AA0
Manuals Compare technical specifications online
Terminal block Compare technical specifications online
Connector Block, 7 Poles, Tin (4/PK) 6ES7292-2AG30-0XA0
Connector keyed, 7 Poles, Tin (4/PK) 6ES7292-2AG40-0XA0
Connector keyed, 7 Poles, Tin (4/PK) 6ES7292-2AG40-0XA1
Connector keyed, 7 Poles, Tin (4/Pk) 6ES7292-2AG40-0XA2
Connector Block, 8 Terminal, Tin (4/PK) 6ES7292-2AH30-0XA0
Connector Block, 8 Poles, Tin (4/PK) 6ES7292-2AH40-0XA0
Connector Block, 10 Poles, Tin (4/PK) 6ES7292-2AK30-0XA0
Connector Block, 11 Poles, Tin (4/PK) 6ES7292-2AL30-0XA0
Connector Block, 11 Poles, Tin (4/PK) 6ES7292-2AL40-0XA0
Connector Block, 12 Poles, Tin (4/PK) 6ES7292-2AM30-0XA0
Connector Block, 12-pole, tin (4/PK) 6ES7292-2AM40-0XA0
Connector Block, 14 Poles, Tin (4/PK) 6ES7292-2AP30-0XA0
Connector Block, 14 Poles, Tin (4/PK) 6ES7292-2AP40-0XA0
Connector Block, 16 Poles, Tin (4/PK) 6ES7292-2AR30-0XA0
Connector Block, 18 Poles, Tin (4/PK) 6ES7292-2AT30-0XA0
Connector Block, 20 Poles, Tin (4/PK) 6ES7292-2AV30-0XA0
Connector Block, 20-pole, tin (4/PK) 6ES7292-2AV40-0XA0
Connector Block, 3-pole, gold (4/PK) 6ES7292-2BC30-0XA0
Terminal block, 6 Poles, gold (4/PK) 6ES7292-2BF30-0XB0
Connector Block, 7 Poles, Gold (4/PK) 6ES7292-2BG30-0XA0
Connector Block, 11 Poles, Gold (4/PK) 6ES7292-2BL30-0XA0
Connector Block, 7 Terminal, Tin (4/PK) 6ES7292-1AG30-0XA0
Connector keyed, 7 Terminal, Tin (4/PK) 6ES7292-1AG40-0XA0
Connector keyed, 7 Terminal, Tin (4/PK) 6ES7292-1AG40-0XA1
Connector keyed, 7 pins, Tin (4/Pk) 6ES7292-1AG40-0XA2
Connector Block, 8 Terminal, Tin (4/PK) 6ES7292-1AH30-0XA0
Connector Block, 8 Terminal, Tin (4/PK) 6ES7292-1AH40-0XA0
Connector Block, 10 Terminal, Tin (4/PK) 6ES7292-1AK30-0XA0
Connector Block, 11 Terminal, Tin (4/PK) 6ES7292-1AL30-0XA0
Connector Block, 11 Terminal, Tin (4/PK) 6ES7292-1AL40-0XA0
Connector Block, 12 Terminal, Tin (4/PK) 6ES7292-1AM30-0XA0
Connector Block, 12 Terminal, Tin (4/PK) 6ES7292-1AM40-0XA0
Connector Block, 14 Terminal, Tin (4/PK) 6ES7292-1AP30-0XA0
Connector Block, 14 Terminal, Tin (4/PK) 6ES7292-1AP40-0XA0
Connector Block, 16 Terminal, Tin (4/PK) 6ES7292-1AR30-0XA0
Connector Block, 18 Terminal, Tin (4/PK) 6ES7292-1AT30-0XA0
Connector Block, 20 Terminal, Tin (4/PK) 6ES7292-1AV30-0XA0
Connector Block, 20 Terminal, Tin (4/PK) 6ES7292-1AV40-0XA0
Connector Block, 3 Terminal, Gold (4/PK) 6ES7292-1BC30-0XA0
terminal block, 6 Terminal, gold (4/PK) 6ES7292-1BF30-0XA0
Terminal block, 6 Terminal, gold (4/PK) 6ES7292-1BF30-0XB0
Connector Block, 7 Terminal, Gold (4/PK) 6ES7292-1BG30-0XA0
Connector Block, 11 Terminal, Gold(4/PK) 6ES7292-1BL30-0XA0
TeleService
TS ADAPTER IE BASIC SIMATIC TELESERVICE 6ES7972-0EB00-0XA0
TS ADAPTER IE ADV. SIMATIC TELESERVICE 6ES7972-0EA00-0XA0
TeleService module modem 6ES7972-0MM00-0XA0
TeleService module ISDN 6ES7972-0MD00-0XA0
TeleService module RS232 6ES7972-0MS00-0XA0
Antenna ANT794-4MR, 2G/3G/4G EU networks 6NH9860-1AA00
Antenna ANT794-3M, 2G networks 6NH9870-1AA00
Strain relief Compare technical specifications online
S7-1200 Single Port RJ45 Strain Relief 6ES7290-3AA30-0XA0
S7-1200 Dual Port RJ45 Strain Relief 6ES7290-3AB30-0XA0
SIMATIC S7-1200, Expansion Cable 2.0M 6ES7290-6AA30-0XA0
Repeater RS485 f. PROFIBUS/MPI 6ES7972-0AA02-0XA0
Diagnostic repeater f. PROFIBUS-DP, 6ES7972-0AB01-0XA0
SIPLUS
SIPLUS DP RS485-Repeater 6AG1972-0AA02-7XA0
SIPLUS Diagnose-Repeater fuer Profibus 6AG1972-0AB01-4XA0
Accessories M8, M12
AS-INTERFACE, BLANK PLUG 3RK1901-1KA00
M12 PROFIBUS SOCKET ANGLED 3RK1902-4HB15-5AA0
M12 PROFIBUS SOCKET ANGLED 3RK1902-4HB50-5AA0
M12 PROFIBUS SOCKET ANGLED 3RK1902-4HC01-5AA0
M12 - M12 CABLE 1.5M 3 POLE 3RK1902-4PB15-3AA0
ET200, Y Cable 6ES7194-6KA00-0XA0
Conn. Cable IO-Link, 2 X M12-4pin, 5m 6GT2891-4MH50
Conn. Cable IO-Link, 2 X M12-4pin, 10m 6GT2891-4MN10
Control Cable 5 core cable sold by meter 6XV1801-2C
Control Connecting Cable M12/M12, 0,5m 6XV1801-2CE50
Control Connecting Cable M12/M12, 1,0m 6XV1801-2CH10
Control Connecting Cable M12/M12, 1,0m 6XV1801-2CH15
Control Connecting Cable M12/M12, 2,0m 6XV1801-2CH20
Control Connecting Cable M12/M12, 3,0m 6XV1801-2CH30
Control Connecting Cable M12/M12, 5,0m 6XV1801-2CH50
Control Connecting Cable M12/M12, 10,0m 6XV1801-2CN10
Control Connecting Cable M12/M12, 15,0m 6XV1801-2CN15
Control M12 Cable Connector PRO 6GK1908-0DC10-6AA0
Sensors Compare technical specifications online
SIPLUS CMS2000 VIB-SENSOR S01 6AT8002-4AB00
SIPLUS CMS VIB-SENSOR S02 6AT8008-2AA00-0AA0
SIPLUS CMS VIB-SENSOR S03 6AT8008-2AA02-0AA0
Cable Compare technical specifications online
SIPLUS CMS2000 CABLE 3m 6AT8002-4AC03
SIPLUS CMS2000 CABLE 10m 6AT8002-4AC10
SIPLUS CMS CABLE 30m 6AT8008-2BA12-0AA0
Engineering software and software options
Article number
SIMATIC STEP 7 Basic V18 DL 6ES7822-0AE08-0YA5
SIMATIC STEP 7 Basic V18 6ES7822-0AA08-0YA5
STEP 7 Basic TIA Portal SUS DL 6ES7822-0AE00-0YY0
STEP 7 Basic SW Update Service, 1 Year 6ES7822-0AA00-0YL0
STEP 7 Safety Basic V18 SW DL 6ES7833-1FB18-0YH5
STEP 7 Safety Basic V18 6ES7833-1FB18-0YA5
STEP7 Safety Basic, SUS Download 6ES7833-1FD00-0YN2
STEP7 Safety Basic, SW Update Service 6ES7833-1FD00-0YX2
