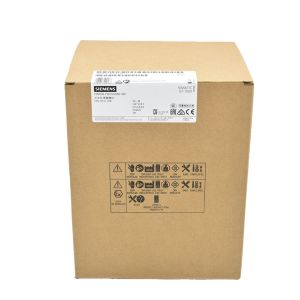

SIEMENS PLC SIMATIC S7-1500CPU CPU 1511C-1 PN 6ES7511-1CK01-0AB0
SIMATIC MEMORY CARD NECESSARY
Product Introduction:
The SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 CK 6ES7511-1CK01-0AB0 is
a central processing unit (CPU) specifically designed for
industrial automation applications. It is part of the Siemens
SIMATIC S7-1500 series, known for its advanced functionality, high
performance, and reliability.
Product Information and Specifications:
- Model: CPU 1511-1 CK 6ES7511-1CK01-0AB0
The CPU 1511-1 CK features a powerful processor that ensures fast
and efficient execution of control programs. It supports multiple
programming languages, including ladder logic, function blocks, and
structured text, providing flexibility and ease of use for complex
control tasks.
In terms of memory capacity, the CPU 1511-1 CK offers sufficient
storage space for both program and data. While specific details
were not provided in the query, typical configurations of the CPU
include program memory ranging from 50 KB to 200 KB and data memory
ranging from 50 KB to 200 KB. This memory capacity allows users to
store their control programs and necessary data structures for the
PLC's operation.
Designed to operate in demanding industrial environments, the CPU
1511-1 CK delivers reliable and precise control for applications
such as manufacturing, process control, and machine automation. It
supports a wide range of communication interfaces, enabling
seamless integration with other devices and systems within the
automation network.
The CPU 1511-1 CK is typically programmed and configured using
Siemens' TIA Portal (Totally Integrated Automation Portal)
software. The TIA Portal provides a comprehensive engineering
environment for efficient programming, simulation, and diagnostics,
ensuring easy development and maintenance of automation projects.
Product Attributes:
- Model: CPU 1511-1 CK 6ES7511-1CK01-0AB0
- Processor: Powerful processor for fast and efficient control
program execution
- Programming Languages: Supports ladder logic, function blocks,
and structured text
- Memory Capacity: Sufficient storage space for program and data
- Communication Interfaces: Supports various communication
interfaces
- Engineering Software: Programmed and configured using Siemens'
TIA Portal
- Suitable for: Manufacturing, process control, and machine
automation applications
In summary, the SIEMENS PLC SIMATIC S7-1500 CPU 1511-1 CK
6ES7511-1CK01-0AB0 is a reliable CPU with advanced features,
sufficient memory capacity, and seamless communication
capabilities. It provides efficient and precise control for various
industrial processes, making it suitable for a wide range of
industrial automation applications.
| General information |
| Product type designation | CPU 1511C-1 PN |
| HW functional status | FS03 |
| Firmware version | V2.9 |
| Product function |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes; With minimum OB 6x cycle of 625 µs (distributed) |
| Engineering with |
| ● STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V15 (FW V2.5) or higher; with older TIA Portal
versions configurable as 6ES7511-1CK00-0AB0 |
| Configuration control |
| via dataset | Yes |
| Display |
| Screen diagonal [cm] | 3.45 cm |
| Control elements |
| Number of keys | 8 |
| Mode buttons | 2 |
| Supply voltage |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V; 20.4 V DC, for supplying the digital inputs/outputs |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Mains buffering |
| ● Mains/voltage failure stored energy time | 5 ms; Refers to the power supply on the CPU section |
| ● Repeat rate, min. | 1/s |
| Input current |
| Current consumption (rated value) | 0.8 A; Without load; 9.8 A: CPU + load |
| Current consumption, max. | 1 A; Without load; 10 A: CPU + load |
| Inrush current, max. | 1.9 A; Rated value |
| I²t | 0.34 A²·s |
| Digital inputs |
| ● from load voltage L+ (without load), max. | 20 mA; per group |
| Digital outputs |
| ● from load voltage L+, max. | 30 mA; Per group, without load |
| output voltage / header |
| Rated value (DC) | 24 V |
| Encoder supply |
| Number of outputs | 1; One common 24 V encoder supply |
| 24 V encoder supply |
| ● 24 V | Yes; L+ (-0.8 V) |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 1 A |
| Power |
| Infeed power to the backplane bus | 10 W |
| Power consumption from the backplane bus (balanced) | 8.5 W |
| Power loss |
| Power loss, typ. | 11.8 W |
| Memory |
| Number of slots for SIMATIC memory card | 1 |
| SIMATIC memory card required | Yes |
| Work memory |
| ● integrated (for program) | 175 kbyte |
| ● integrated (for data) | 1 Mbyte |
| Load memory |
| ● Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Backup |
| ● maintenance-free | Yes |
| CPU processing times |
| for bit operations, typ. | 60 ns |
| for word operations, typ. | 72 ns |
| for fixed point arithmetic, typ. | 96 ns |
| for floating point arithmetic, typ. | 384 ns |
| CPU-blocks |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| DB |
| ● Number range | 1 ... 60 999; subdivided into: number range that can be used by the
user: 1 ... 59 999, and number range of DBs created via SFC 86: 60
000 ... 60 999 |
| ● Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| FB |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 175 kbyte |
| FC |
| ● Number range | 0 ... 65 535 |
| ● Size, max. | 175 kbyte |
| OB |
| ● Size, max. | 175 kbyte |
| ● Number of free cycle OBs | 100 |
| ● Number of time alarm OBs | 20 |
| ● Number of delay alarm OBs | 20 |
| ● Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs |
| ● Number of process alarm OBs | 50 |
| ● Number of DPV1 alarm OBs | 3 |
| ● Number of isochronous mode OBs | 1 |
| ● Number of technology synchronous alarm OBs | 2 |
| ● Number of startup OBs | 100 |
| ● Number of asynchronous error OBs | 4 |
| ● Number of synchronous error OBs | 2 |
| ● Number of diagnostic alarm OBs | 1 |
| Nesting depth |
| ● per priority class | 24 |
| Dimensions |
| Width | 85 mm |
| Height | 147 mm |
| Depth | 129 mm |
| Weights |
| Weight, approx. | 1 050 g |
