SIEMENS 6ES7314-5AE01-0AB0 SIMATIC S7-300, CPU 314 IFM COMPACT CPU WITH MPI, 16DI/16DO, 4AI/1AO , 2 X 40 PIN

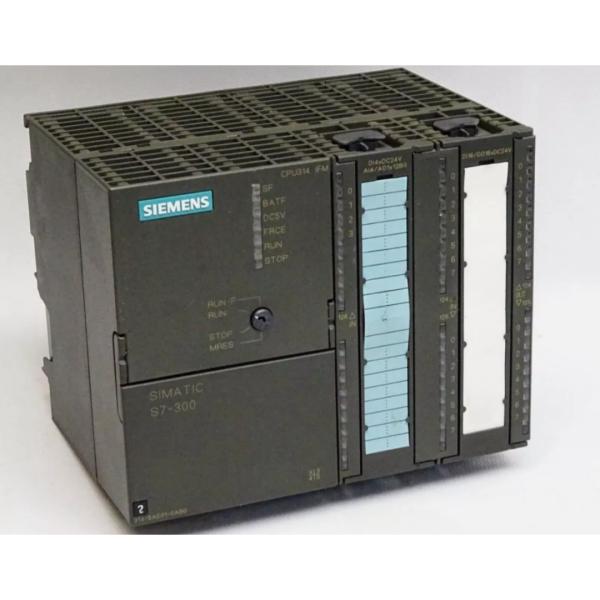

The Siemens 6ES7314-5AE01-0AB0 is a SIMATIC S7-300 CPU 314 IFM Compact CPU module. This CPU comes with integrated MPI (Multi-Point Interface) and offers a variety of digital and analog inputs and outputs.

**Product Description:**
- **Model:** 6ES7314-5AE01-0AB0
- **Product:** SIMATIC S7-300 CPU 314 IFM Compact CPU
- **Interface:** Integrated MPI (Multi-Point Interface)
- **Digital Inputs/Outputs:** 16 DI (Digital Inputs) / 16 DO (Digital Outputs)
- **Analog Inputs/Outputs:** 4 AI (Analog Inputs) / 1 AO (Analog Output)
- **Connector Type:** 2 x 40-pin

**Key Features:**
1. **Compact Design:** The IFM (Integrated Functions Module) design integrates various functions into a single module, saving space.
2. **Integrated MPI:** Allows for communication within the S7-300 system and with external devices.
3. **Digital Inputs/Outputs:** Provides 16 digital inputs and 16 digital outputs for handling binary signals.
4. **Analog Inputs/Outputs:** Includes 4 analog inputs and 1 analog output for processing continuous signals.
5. **Connector Type:** Equipped with 2 x 40-pin connectors for connecting to external devices or expansion modules.

**Applications:**
1. **Control Systems:** Suitable for controlling and monitoring processes in industrial automation applications.
2. **PLC Programming:** Enables the creation of control logic for automated processes.
3. **Analog Signal Processing:** Allows for the handling of analog signals for more precise control and monitoring.

For detailed installation instructions, configuration guidelines, and programming information for the 6ES7314-5AE01-0AB0 CPU module, refer to the product documentation provided by Siemens. Siemens' technical support can also provide assistance in integrating and utilizing this CPU within your specific automation setup.
